1.Technical Parameter

Function: Three-side sealing & Middle sealing & Double zipper Standing & Four side sealing

Main Electric Device: Three Servo Motor, Panasonic PLC, AC motor masterdrive, Panasonic frequency converter, Temperature control 18 Road, Tension control unwinding.

Base material: two-layer or multi-layer three-side sealing laminated film pouches with zipper sealing and doy-pack making function which take BOPP, PET, CPP, PE, nylon, aluminum foil and paper as base material.

Max working speed: 150 times/min (100 times/min for middle-side sealing)

Max unwinding line speed: less than or equal to 38 meter/min (subject to base material)

Making bag size: length (400mm), It adopts times to send when the length is more than 400mm. (Max times to send is six)

Max width of bag: 600mm

Max size of roll material: diameter 600*1250mm(Diameter*Width)

Location precise: less than or equal to addition and subtraction0.5mm

Heating sealing knife quantity: 2 set Longitudinal Knife, warming and cooling up and down.
4 set Longitudinal Knife, warming and cooling up and down.
Transverse Knife: 3 set warming up and down. 2 set cooling up and down.
Transverse sealing adopts ultrasonic welding zipper head.

Temperature electric heating quantity: 18 piece.

Temperature range: 0~300Celsius

Total Power: 65Kw (Starting power is about 45kw, in condition of keeping warm, power is about 35kw)

Overall dimension: 12500*2500*1950mm(L*W*H)

Net weight: About 7500 kg(Middle sealing part weighs about 500 kilograms ).

Machine steel plate thickness: 10mm (Made in Shanghai, Baosteel)

Control system Model: Japan Panasonic PLC Laminating Film High speed bag making machine control system.

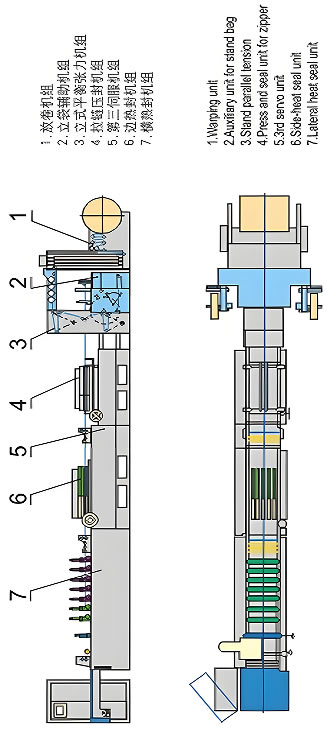

2.      Equipment and Parameter

1)      Unwinding device

A.      Structural form: horizontal type level station(formed of magnetic powder brake, air cylinder, swing roller, pulling roller sensor and control system )

B.       Unwinding bearing: air shaft and pneumatic-lock device.

2)      Unwinding tension

A.      Control system: computer control, magnetic powder brake, Compensation potentiometer, rotary encoder, tension system.

B.       Adjust drive: PID adjust, PWM drive.

C.       Detection mode: Detection by Compensation potentiometer and rotary encoder together.
