1.      Technical Parameter:

Function: Three-side sealing & Double zipper Standing & Standing Bag

Main Electric Device: Three Servo Motor, Panasonic PLC, AC motor masterdrive, Panasonic frequency converter, Temperature control 18 Road, Tension control unwinding.

Base material: two-layer or multi-layer three-side sealing laminated film pouches with zipper sealing and doy-pack making function which take BOPP, PET, CPP, PE, nylon, aluminum foil and paper as base material.

Max working speed: 150 times/min(100 times/min for middle-side sealing)

Max unwinding line speed: less than or equal to38 meter/min (subject to base material)

Making bag size: length(400mm), It adopts times to send when the length is more than 400mm. (Max times to send is six)

Max width of bag: 600mm

Max size of roll material: diameter 600*1250mm(Diameter*Width)

Location precise: less than or equal to addition and subtraction 0.5mm

Heating sealing knife quantity: 2 set Longitudinal Knife, warming and cooling up and down.
4 set Longitudinal Knife, warming and cooling up and down.
Transverse Knife: 3 set warming up and down. 2 set cooling up and down.
Transverse sealing adopts ultrasonic welding zipper head.

Temperature electric heating quantity: 18 piece.

Temperature range: 0~300Celsius

Total Power: 65Kw (Starting power is about 45kw, in condition of keeping warm, power is about 35kw)

Overall dimension: 12500*250081950mm(L*W*H)

Net weight: About 7000 kg

Machine steel plate thickness: 10mm (Made in Shanghai, Baosteel)

Control system Model: Japan Panasonic PLC Laminating Film High speed bag making machine control system.

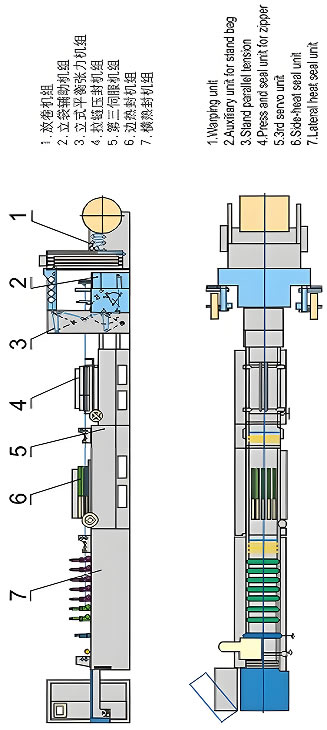

2.      Schematic diagram
